Setting up MikroTik without exposing it to the internet (offline)

There are two setup paths. In the automatic setup (MikroTik Integration Guide) the Useroam panel connects to your router over the internet. In the offline setup (this page) your router is never exposed: the panel asks you two questions, prepares the setup script for your router and gives you a single line to paste into the router's terminal. Both paths set up guest login, Useroam login (RADIUS) and 5651 logging.

What is it for?

This page explains how to connect your MikroTik router to Useroam without exposing it to the internet, that is, without letting the Useroam panel connect to the router. The panel's offline setup wizard does not connect to your router; it asks which interfaces carry the guest network and the internet uplink and builds the setup script from your answers. The router only talks outwards: it downloads the script and the welcome pages from the panel, asks Useroam about guest logins and sends 5651 records to Useroam. No management user, web service or inbound management access is added to your router.

When to use it

Your security policy does not allow the router's management service (HTTPS) to be reachable from the internet.
The router sits behind another modem or a carrier-grade shared IP (CGNAT) and cannot be reached from outside.
The automatic setup showed USEROAM: device registered, but the panel could NOT connect back. and you cannot set up port forwarding (see "If Useroam cannot reach the router" below).
Your customer's network policy only allows the router to connect outwards and accepts no inbound connections.

What works with the offline setup?

Feature	Offline setup	Notes
Guest login (SMS, WhatsApp, voucher, hotel and other login methods)	Works	The router asks Useroam over RADIUS. The welcome page is served by Useroam.
Session records (duration, data used)	Works	The router sends session updates every 5 minutes.
Active Guests list	Works	The list is built from the session records the router sends. There is no disconnect button in the list.
5651 logging	Works	The router sends its logs to Useroam over UDP 514. 5651 Logging (5651 Loglama) must be on in the panel.
Blocked Users	Works	A blocked guest is rejected at their next login. A session that is already open is not closed.
Group settings (speed, quota, duration, idle time, device count)	Works, applied at login	The settings are sent to the router when the guest logs in. If you change a guest's group later, it takes effect when they log in again. If the group names a router profile or address list, it must exist on the router with the same name (created by hand).
MikroTik Management console	Does not work	The console connects to the router over the internet. On an offline router you see the Cannot reach the device... warning. Only the Setup section opens; that is the offline wizard on this page.
Disconnecting a guest or blocking them on the router instantly from the panel	Does not work	These actions need a connection to the router.
Speed package sales	Not available on MikroTik	Not available with the automatic setup either.

Before you start

RouterOS 7.1 or newer. You can see your version in the terminal with /system resource print (the version line).
Winbox and an administrator account on the router. You can download Winbox from the link on the Setup tab of Device Settings.
The public IPv4 address the router uses to reach the internet. If the router sits behind a modem, this is the modem's public address. It must be entered exactly as the Device Address in the panel: when the router downloads the setup script, the panel checks which address the request came from and refuses the script if it differs. Useroam also recognises guest logins and 5651 records by this address. If you do not know it, open a "what is my ip" website on a computer in the same network.
The router must be able to connect outwards: HTTPS (TCP 443) to panel.useroam.com, UDP 1812 and 1813 for RADIUS, UDP 514 for 5651 records. No port needs to be opened towards the router.
Which interface carries the guest network. The port your guest access point (AP) is plugged into, or the bridge that port belongs to.

Step by step

(RouterOS 7.23.3 and newer only) Turn on device mode. In Winbox open New Terminal, paste the line below, press Enter, then unplug the router's power and plug it back in. On these versions the hotspot cannot be set up until device mode is on. Skip this step on older versions. The panel shows the same warning in a yellow box.
```
/system device-mode update mode=advanced
```

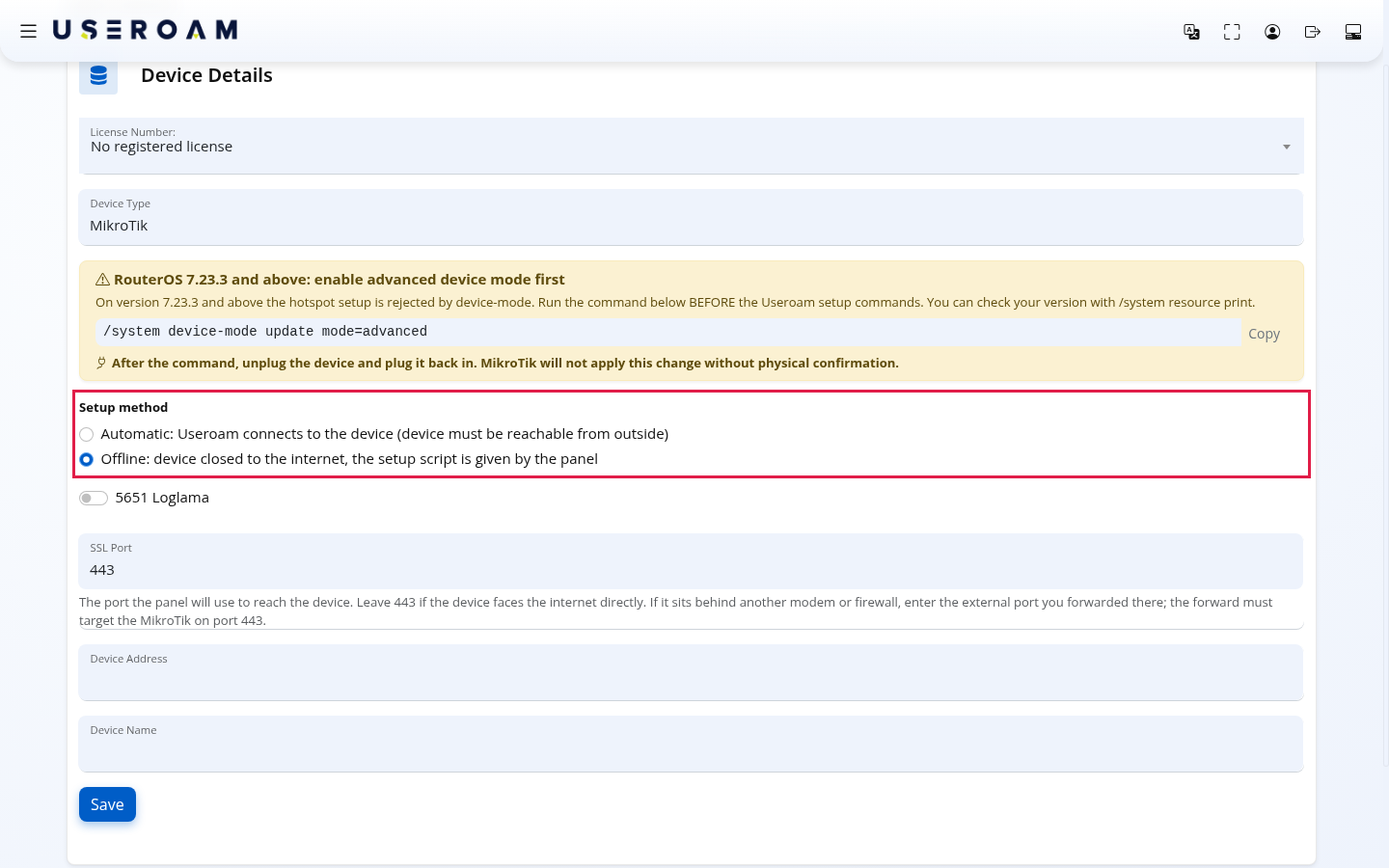

Add the router to the panel and choose Offline. In Device Selection > New Device, choose MikroTik as the Device Type. Setup method appears right below it; select Offline: device closed to the internet, the setup script is given by the panel. Enter the router's public IPv4 address (for example 203.0.113.10) as the Device Address, turn on 5651 Logging (on screen: 5651 Loglama) and press Save. The SSL Port is not used in the offline setup; it can stay 443. After saving, the panel takes you straight to the offline setup wizard.

If the router is already in the panel, skip this step: open Device Settings from the left menu, go to the Setup tab and press Device closed to the internet? Offline setup. This button also appears on MikroTik routers the panel cannot connect to (no Firewall API connection). The same link is at the top of the Setup section in the MikroTik Management console.

For an offline setup, do not press Generate setup code on the Setup tab. That button is for the automatic setup.
Find the names of the two interfaces. Type the lines below into the Winbox terminal one by one. They only read; nothing is changed.
```
/interface print
/interface bridge port print
/ip route print where dst-address=0.0.0.0/0
```
- Internet uplink (WAN): the interface the active default route leaves through in the output of the third command (for example ether1 or pppoe-out1). In Winbox it is the interface on the 0.0.0.0/0 line under IP > Routes.
- Guest interface: the port or bridge your guest access point is connected to (for example ether3 or bridge-misafir). Do not enter a port that the second command lists as a bridge member; enter the bridge itself. Do not enter the internet interface.
Type the two names into the wizard. The blue box at the top of the Setup Wizard card reads Offline setup: Useroam does not connect to your device, you do not need to open it to the internet.... Type the guest interface name (for example bridge-misafir) into 1. Which interface will carry the guest network and the internet interface name (for example ether1) into 2. Internet uplink (WAN). Type the names exactly as they appear on the router, including upper and lower case.

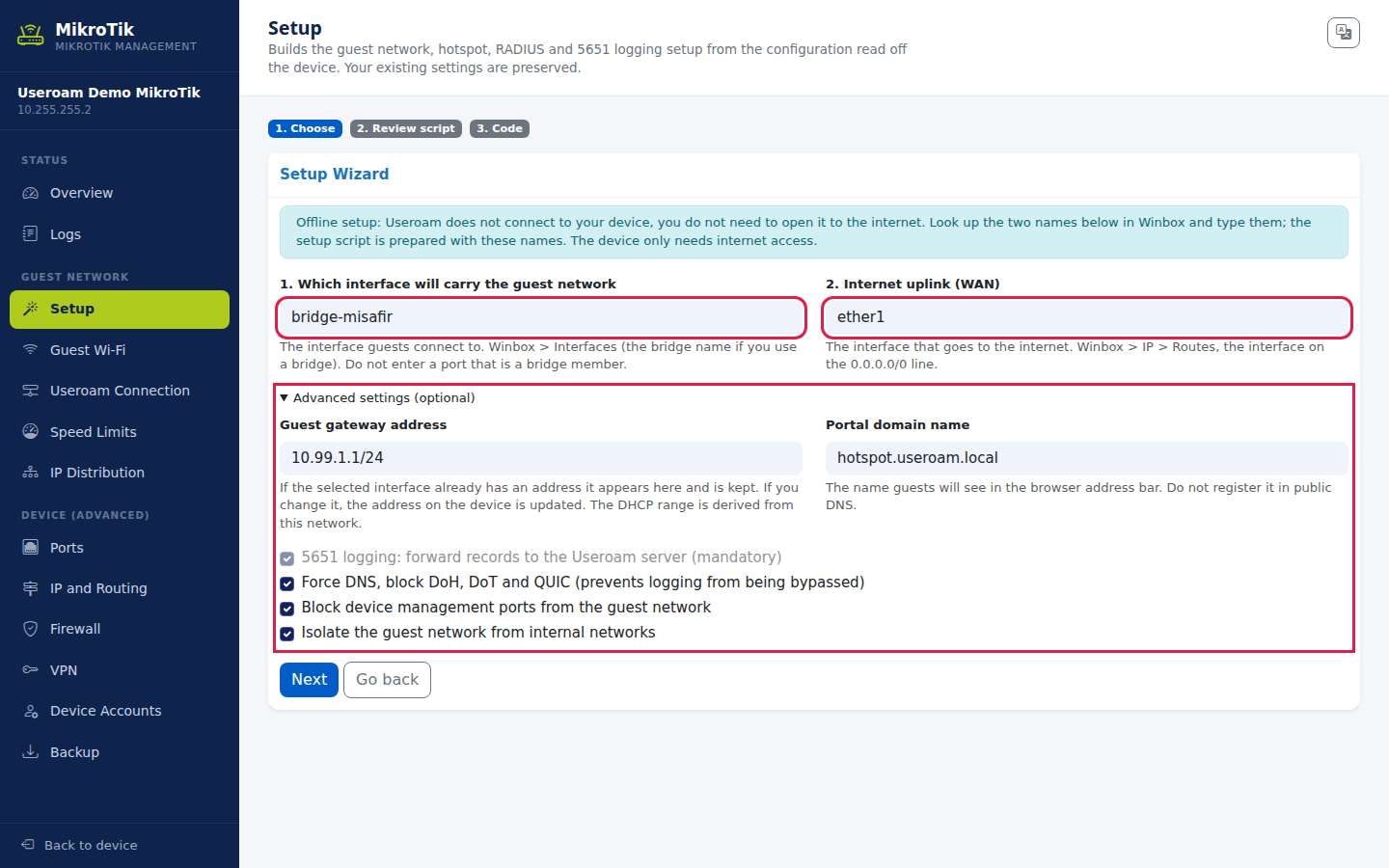

(Optional) Check the advanced settings. Clicking Advanced settings (optional) opens four settings: Guest gateway address (default 10.99.1.1/24), Portal domain name (default hotspot.useroam.local) and the security boxes. In the offline setup the panel cannot read your router: if the guest interface already has an address you want to keep, enter it here; otherwise the script replaces the interface address with the value in this box. All four security boxes come ticked; the first (5651 logging) cannot be removed, and we recommend leaving the others ticked. If you are unsure, leave this section alone.

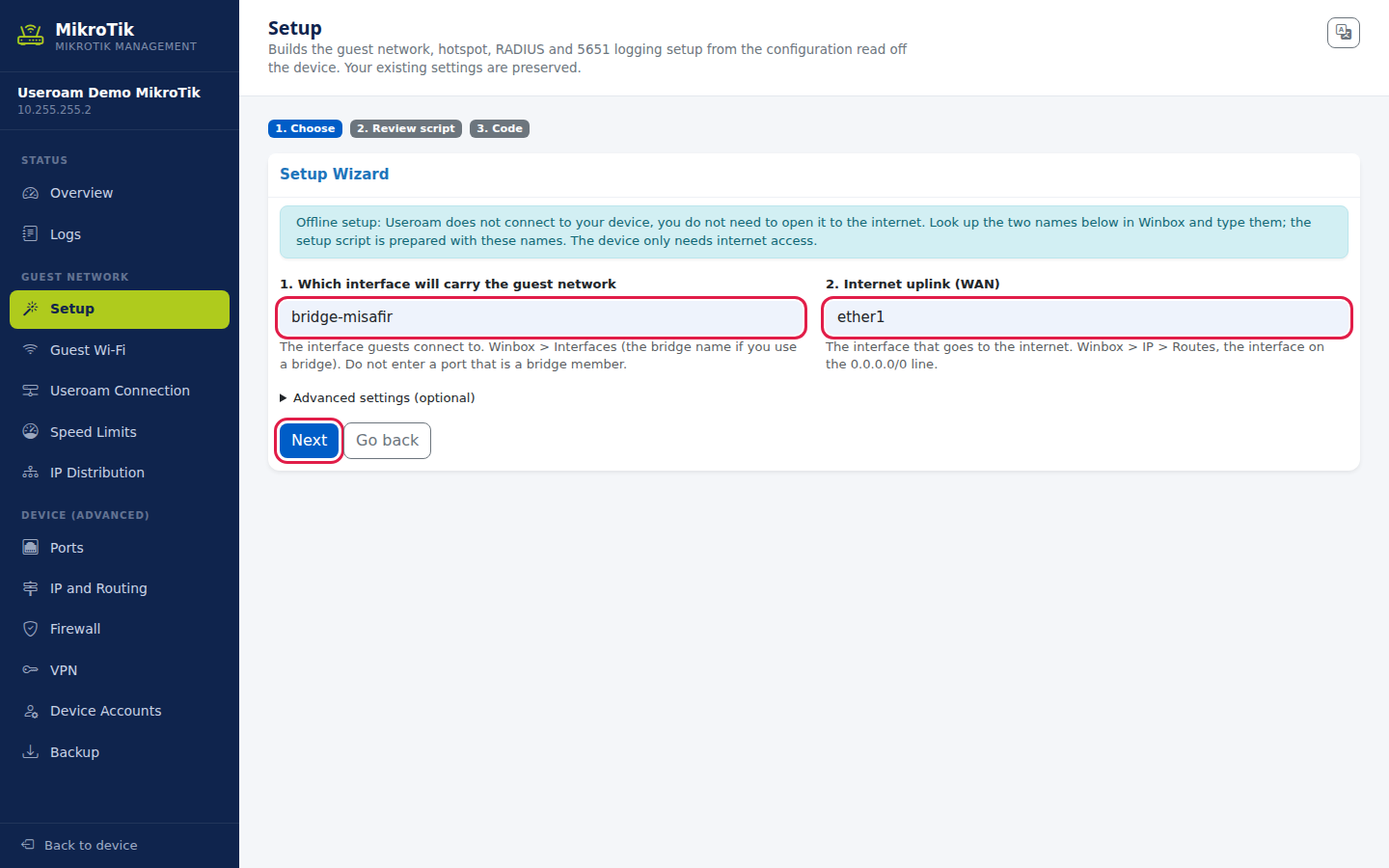

Press Next. The panel builds the script with the names you typed and prepares a single-use setup code valid for 60 minutes. This button writes nothing to the router. Earlier unused codes for this router become invalid. If a box is empty or a name contains a character that is not allowed (such as a space or a Turkish letter), the browser shows a warning next to the box and the form is not sent. If both names are the same, the red warning The selected interface was not found on the device. Refresh the page and try again. appears; type two different names and try again.

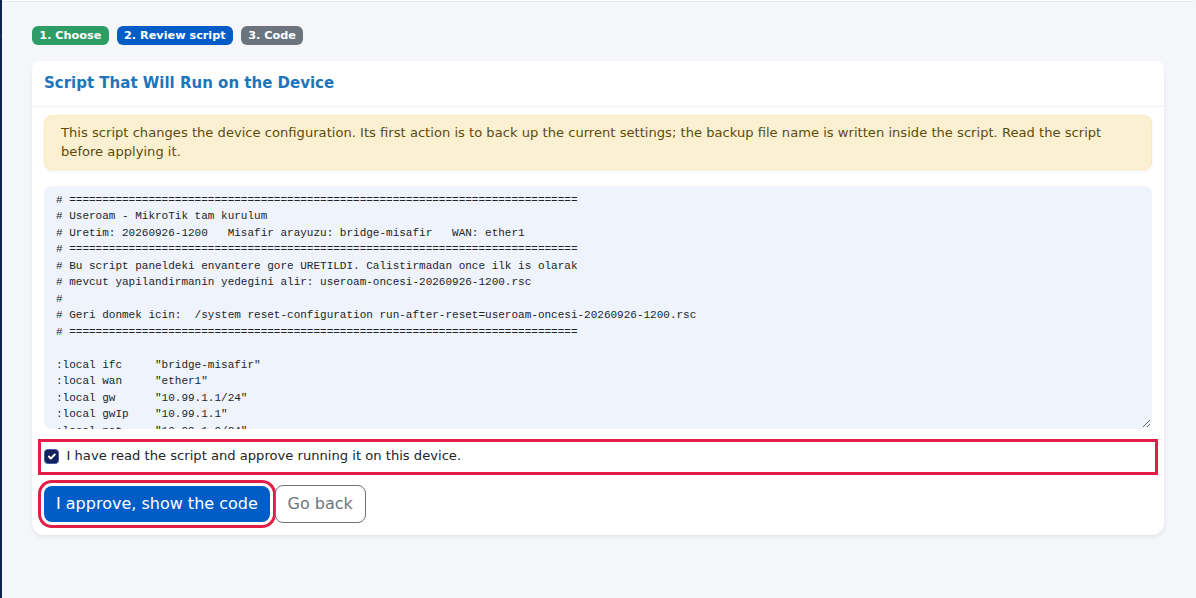

Read and approve the script. In the step badges at the top 2. Review script turns blue and the Script That Will Run on the Device card opens. A plain explanation of what the script does is in the "What does the script do on the device?" table on the MikroTik Setup Wizard page. After reading it, tick I have read the script and approve running it on this device. and press I approve, show the code.

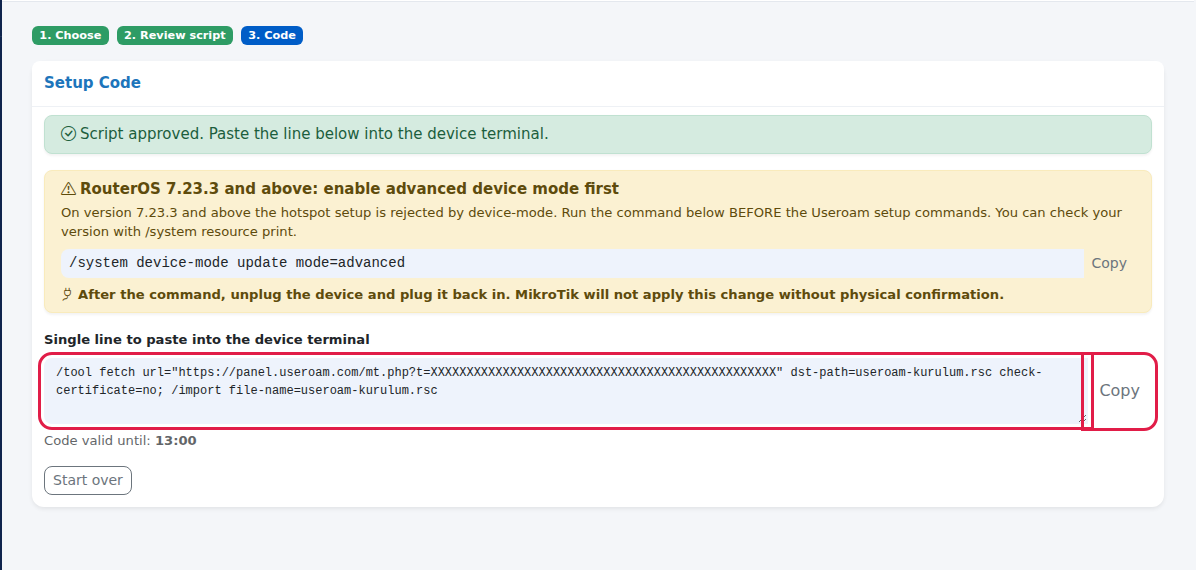

Copy the line. The Setup Code card reads Script approved. Paste the line below into the device terminal.. Press Copy next to the Single line to paste into the device terminal box. Apply it before the time shown on the Code valid until line.
Paste the line into the router's terminal. Open New Terminal in Winbox, paste the line and press Enter. The router downloads the script from the panel and runs it. First, a backup of your current settings is saved to useroam-oncesi-<date-time>.rsc. Then a line starting with Useroam: appears for each step; the welcome page files are also downloaded from the panel automatically (Useroam: portal sayfalari yuklendi).

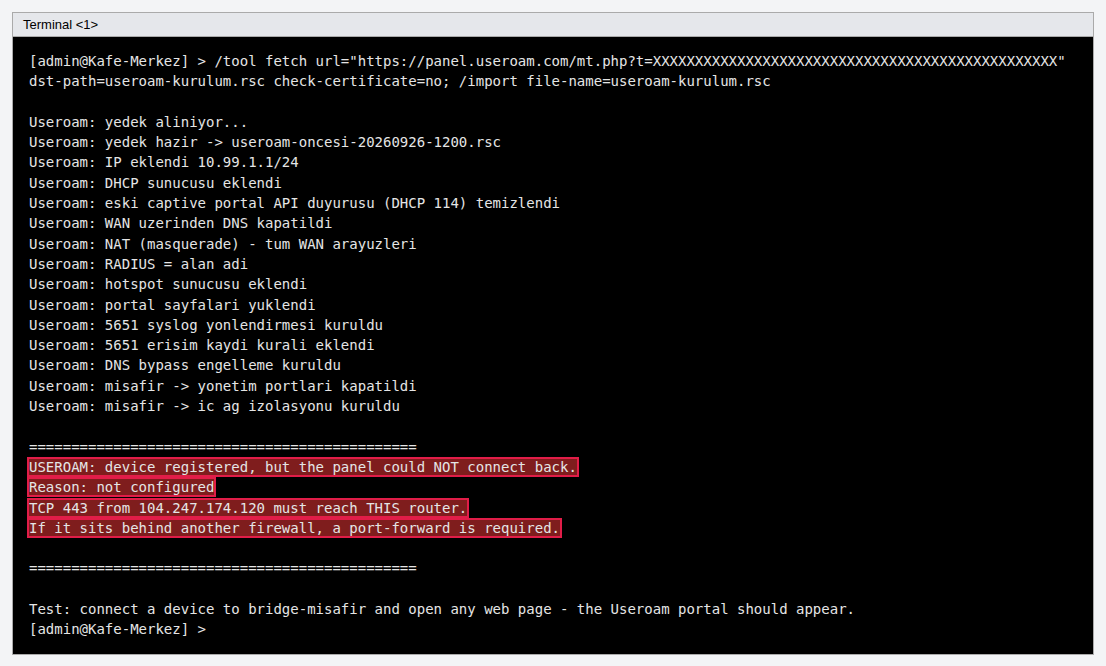

At the end you see the lines where the panel tries to connect back to the router. In the offline setup the panel cannot connect to the router, so you may see USEROAM: device registered, but the panel could NOT connect back. and lines asking for a port-forward here. This is expected and not an error; you do not need a port-forward. The line USEROAM: setup applied, but the panel could not be notified. also means the setup was applied.

The image is an example terminal output; the lines are the script's own messages. The text on the Reason line can differ from router to router. If you see a line starting with USEROAM WARNING: ... step failed, continuing., that step was not applied; note the line and contact our support team.

Check the setup on the router. The commands below only read. Look for the values on the right in each output:

Command	What you should see
`/radius print`	service=hotspot, address panel.useroam.com (or 104.247.174.120), comment useroam-radius
`/ip hotspot print`	Your guest interface and useroam-profile
`/file print where name~"hotspot/login"`	The file hotspot/login.html
`/system logging action print where name=useroamremote`	remote=104.247.174.120, remote-port=514
`/ip firewall filter print where comment~"useroam"`	The useroam-5651-log rule at the top of the list

Try a guest login and confirm it in the panel. Connect a phone to the guest Wi-Fi and open a web page: the Useroam welcome page should open. Log in. Then in the panel:
- The phone's session should appear in Guests > Active Guests (Active Guests).
- A record for this router should appear in Analytics and Reports > 5651 Logs (5651 Logs).

Fields and buttons in the offline wizard

Field / button	What it does	Example
Setup method (New Device, only when MikroTik is selected)	Automatic: Useroam connects to the device (device must be reachable from outside) or Offline: device closed to the internet, the setup script is given by the panel. With Offline, the offline wizard opens right after saving; with Automatic you return to Device Settings.	Offline

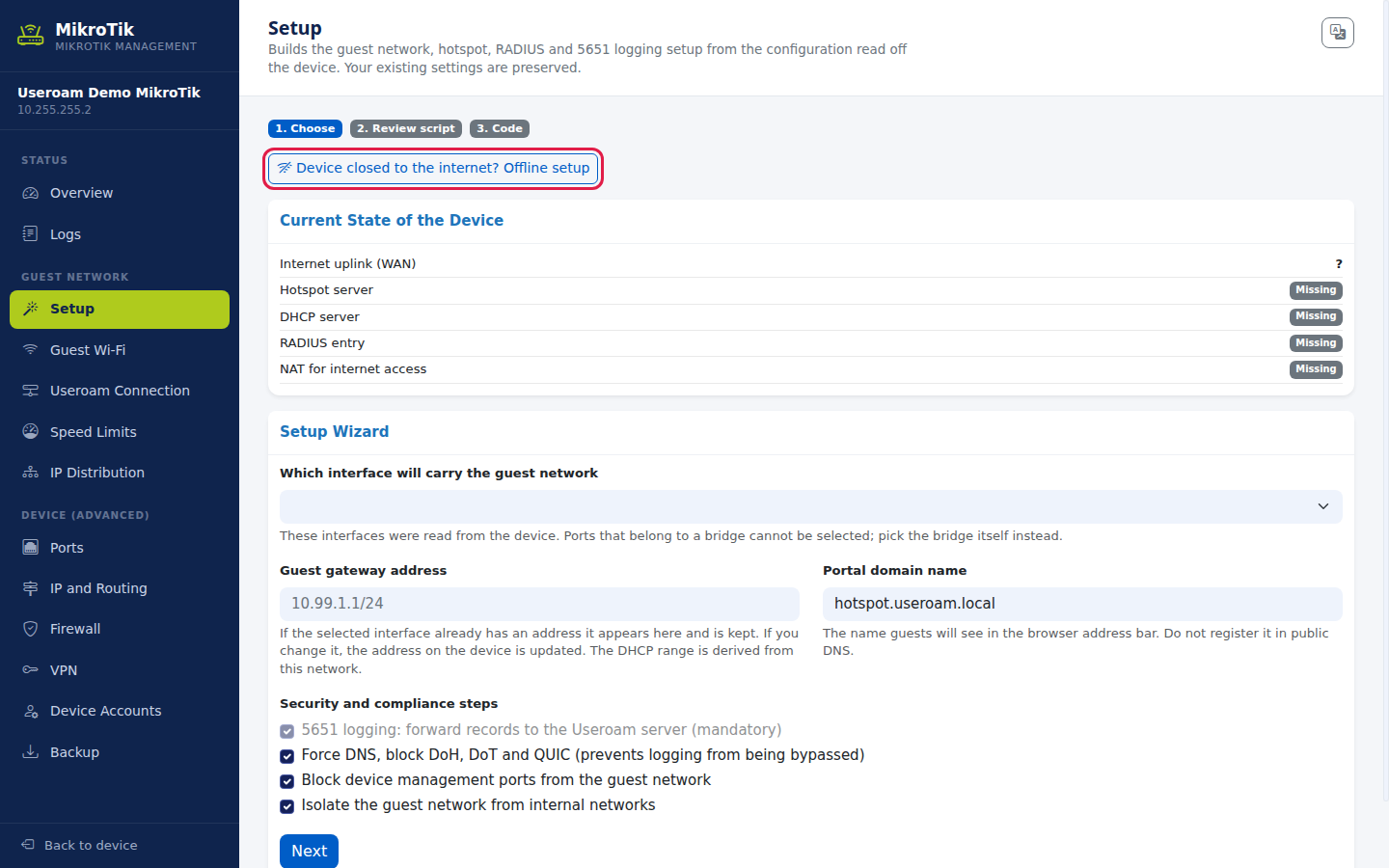

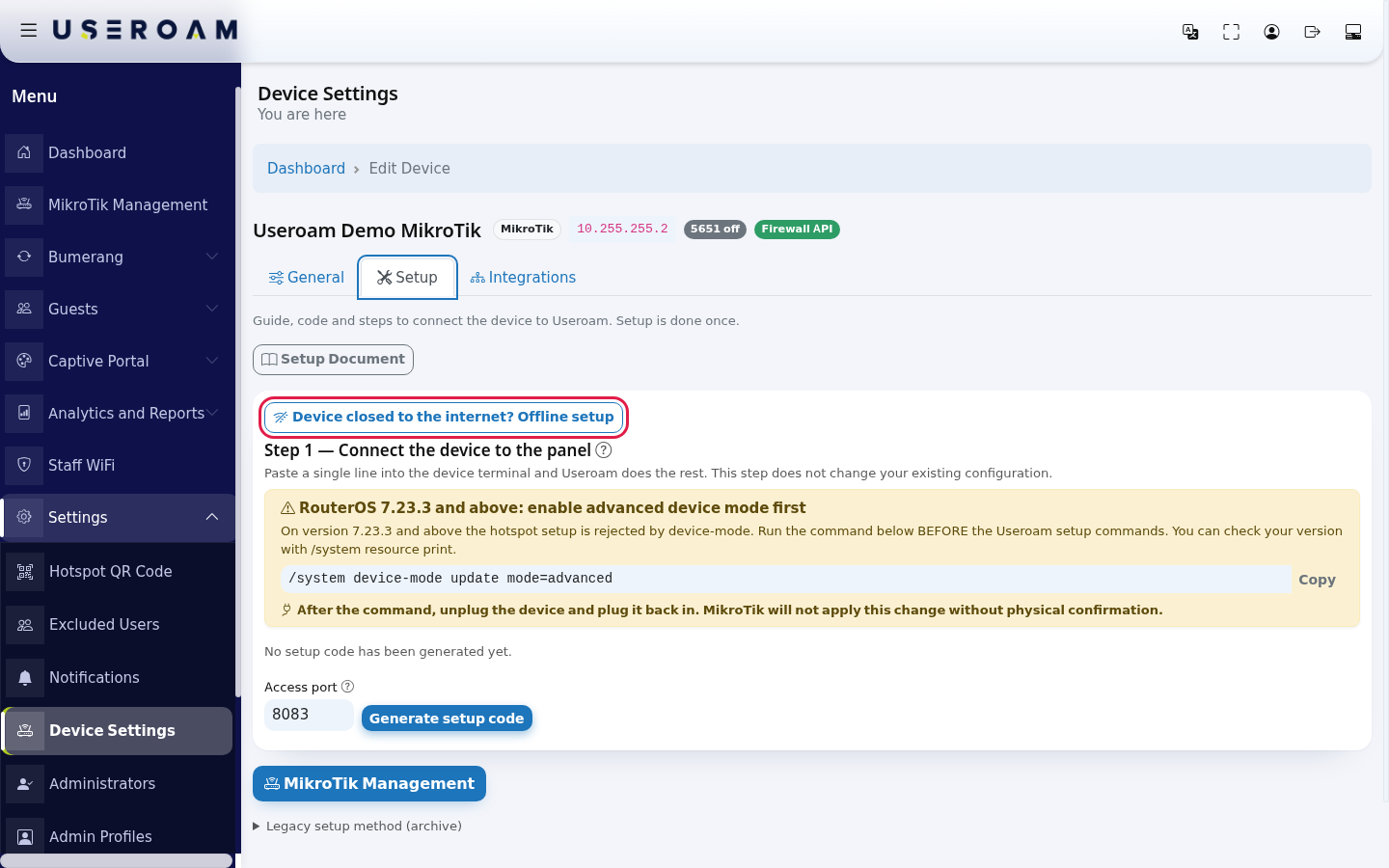

Device closed to the internet? Offline setup	On the Setup tab of Device Settings and at the top of MikroTik Management > Setup. Opens the offline wizard.
1. Which interface will carry the guest network	The router's name for the interface guests connect to. Below it: The interface guests connect to. Winbox > Interfaces (the bridge name if you use a bridge). Do not enter a port that is a bridge member. Up to 32 characters; letters, digits, dot, hyphen and underscore.	bridge-misafir
2. Internet uplink (WAN)	The name of the interface that goes to the internet. Below it: The interface that goes to the internet. Winbox > IP > Routes, the interface on the 0.0.0.0/0 line. It cannot be the same as the guest interface.	ether1
Advanced settings (optional)	Opens the gateway, portal domain name and security boxes.
Guest gateway address	The guest network's address on the router and its size. The IP range handed to guests is derived from it. The script replaces or adds the address on the guest interface with this value.	10.99.1.1/24
Portal domain name	The name guests see in the browser address bar. Do not register it in public DNS.	hotspot.useroam.local
5651 logging: forward records to the Useroam server (mandatory)	Always on, cannot be removed.	ticked
Force DNS, block DoH, DoT and QUIC (prevents logging from being bypassed)	Forces guests' DNS queries through the router.	ticked
Block device management ports from the guest network	Stops guests from reaching the router's SSH, Telnet, Winbox and API ports.	ticked
Isolate the guest network from internal networks	Stops guests from reaching internal networks such as office, till or cameras.	ticked
Next	Builds the script and moves to step 2 (Review script). Writes nothing to the router.
Go back	Returns to the automatic setup wizard.

The screens of steps 2 and 3 (Review script, Setup Code) are the same as in the automatic setup: MikroTik Setup Wizard.

Errors you may see in the terminal

If the panel does not accept the code, the router downloads a short error file instead of the script and the terminal shows this frame: USEROAM: kurulum kodu kabul edilmedi (setup code not accepted), with a Sebep: (reason) line below it. No setting is changed.

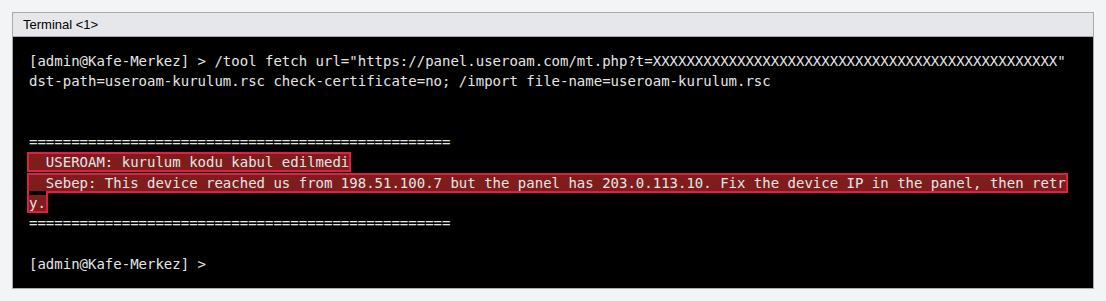

Terminal showing kurulum kodu kabul edilmedi and the reached us from line

Reason line	What it means	What to do
This device reached us from 198.51.100.7 but the panel has 203.0.113.10. Fix the device IP in the panel, then retry.	The router reached the panel from a public address different from the Device Address in the panel. The first address is the one the router really uses.	In Device Settings > General, correct the Device Address to the first address in the message and save. The code has not been used, so if it has not expired you can paste the same line again; if unsure, generate a new code in the wizard.
Setup code has expired. Generate a new one in the Useroam panel.	The code is older than 60 minutes.	Run the wizard again and generate a new code.
Setup code was already used. Generate a new one in the panel.	The code is single-use; this line was already run.	Generate a new code if you want to set up again.
Setup code was cancelled in the panel. Generate a new one.	A newer script was generated for the same router after this code; the old code was cancelled.	Use the line you generated last.
Setup code is invalid or has already been used. or Setup code is invalid or malformed.	The line was copied incompletely or wrongly.	Copy the line again with the Copy button in the panel.
This device is already connected to Useroam.	The setup with this code is already complete.	Nothing to do.
Useroam panel database is unavailable, try again later.	The panel could not answer for a moment.	Try the same line again in a few minutes.

If the terminal shows an error from the /tool fetch command itself instead of the Useroam frame (the download does not finish), the router cannot reach panel.useroam.com over HTTPS. Check the router's DNS settings and any rule that blocks outbound traffic; if the problem continues, use the manual setup below.

If the wizard cannot be used: manual setup

The normal path is the wizard above. The manual setup below is only for cases where you cannot use the wizard: for example, the router cannot reach panel.useroam.com over HTTPS (the setup line cannot download the script), or you cannot generate a router-specific line in the panel. On this path you write the Device Password and the interface names into the file yourself and upload the welcome page files yourself. Do not apply both paths to the same router.

(RouterOS 7.23.3 and newer only) Turn on device mode. In Winbox open New Terminal, paste the line below, press Enter, then unplug the router's power and plug it back in. On these versions the hotspot cannot be set up until device mode is on. Skip this step on older versions.
```
/system device-mode update mode=advanced
```

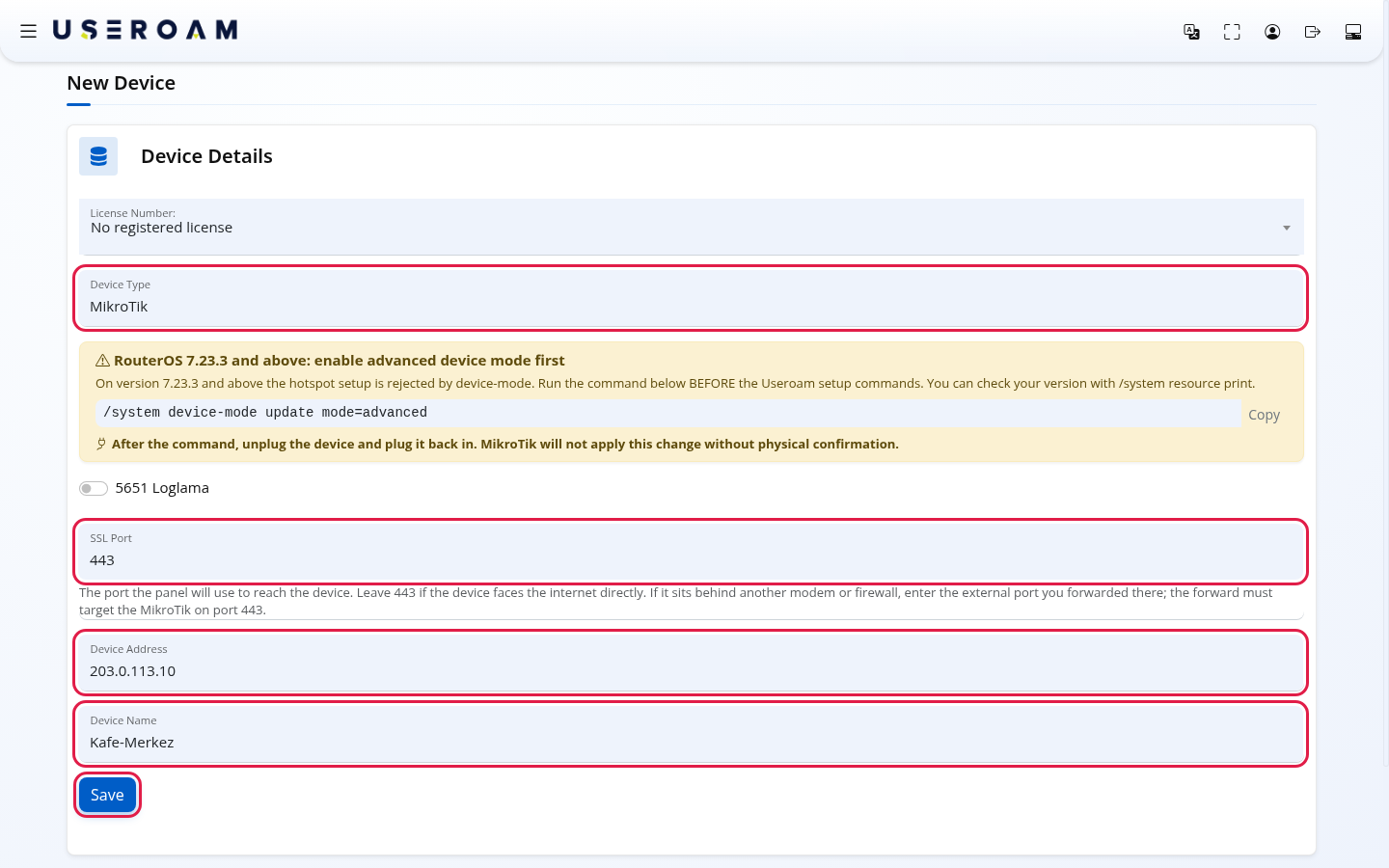

Add the router to the panel. In Device Selection > New Device, choose MikroTik as the device type. Enter the router's public IPv4 address (for example 203.0.113.10) as the device address, turn on 5651 Logging and press Save. The SSL port is not used in the offline setup; it can stay at 443. Skip this step if the router is already added.

Do not press Generate setup code on the Setup tab for an offline setup. That button is for the automatic setup; if you press it, the panel starts waiting to connect to the router.

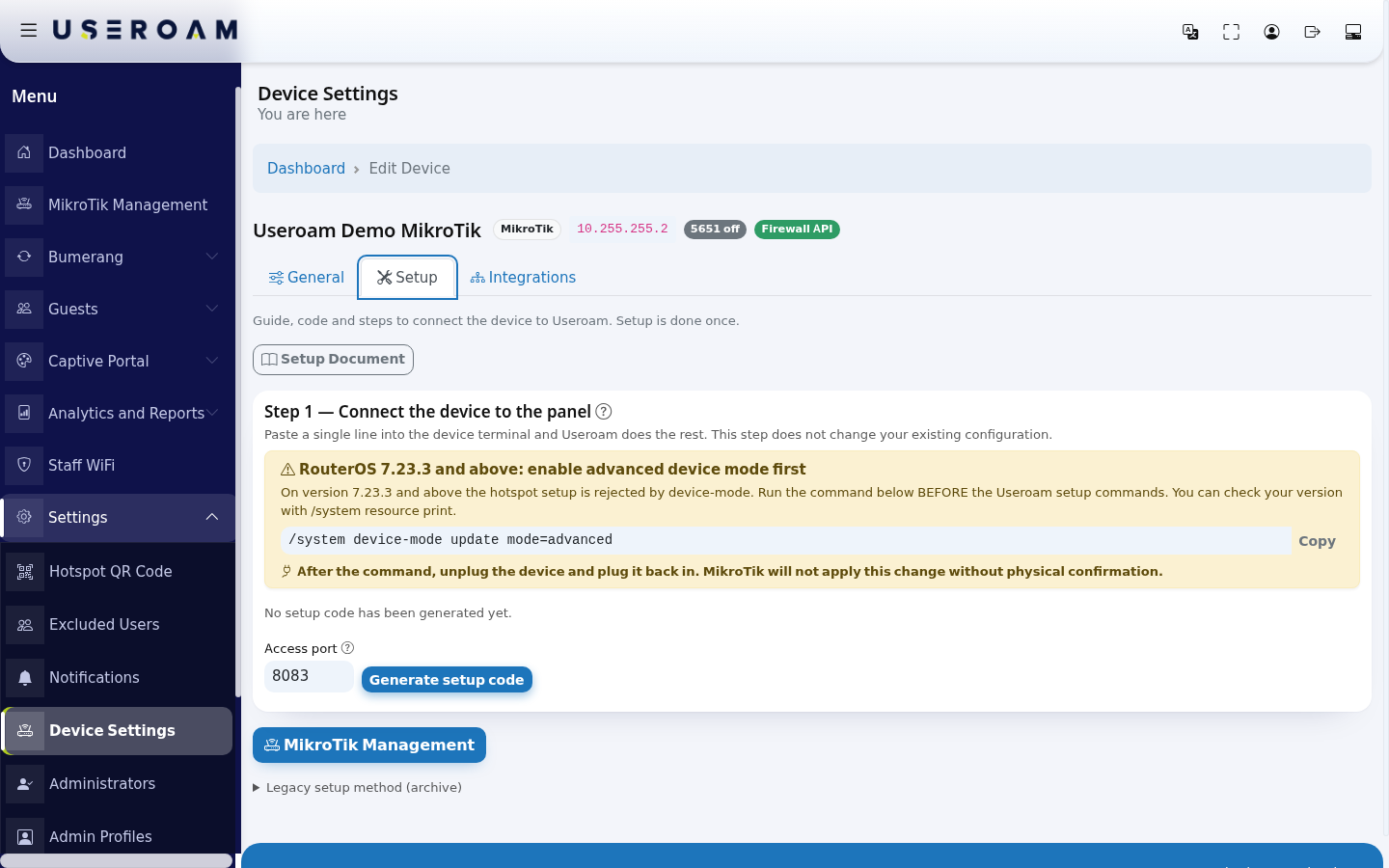

Copy the Device Password. Open Device Settings from the left menu. On the General tab, under Device connection, copy the Device Password. You will put it into the setup file in step 7. Do not change it.

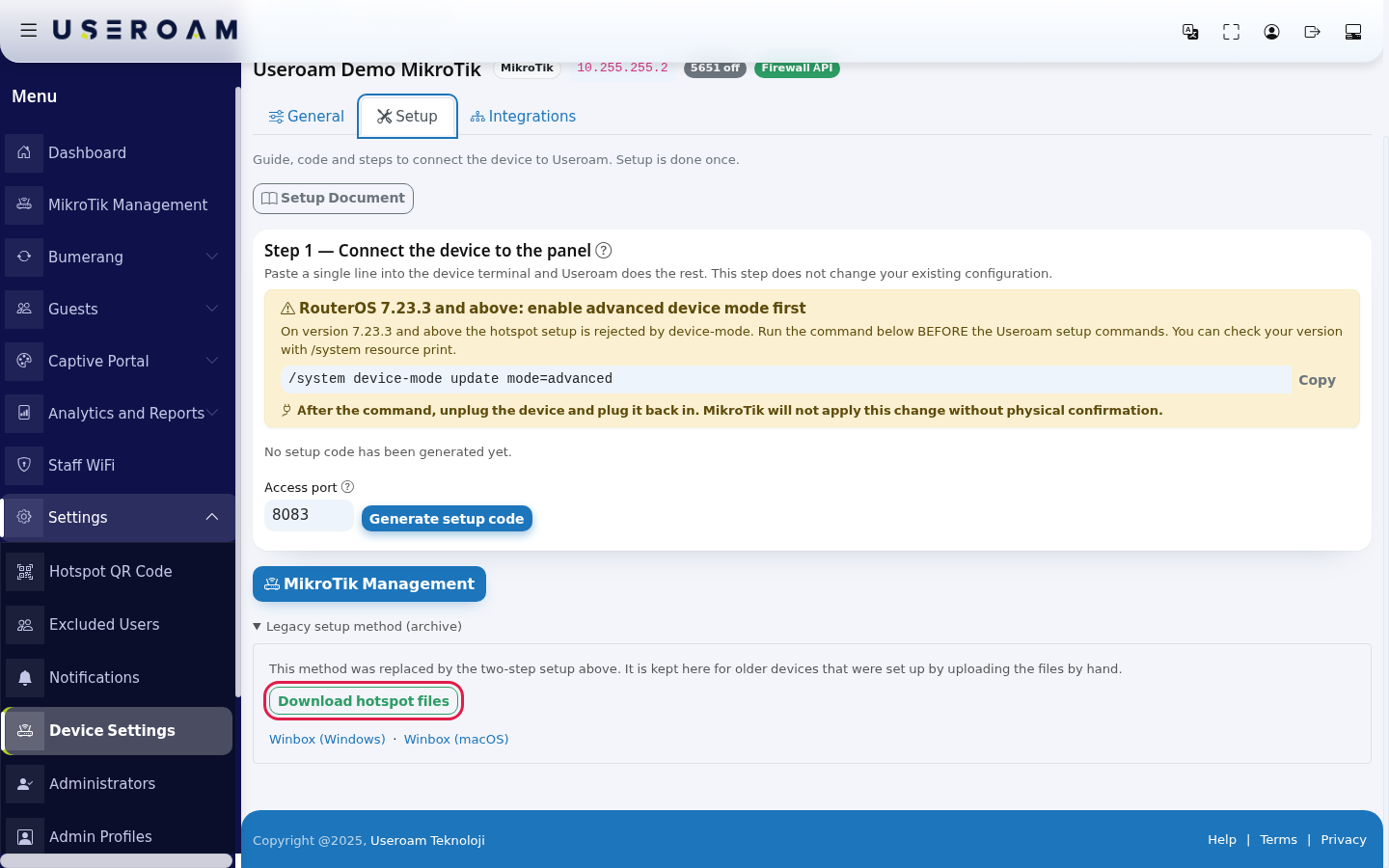

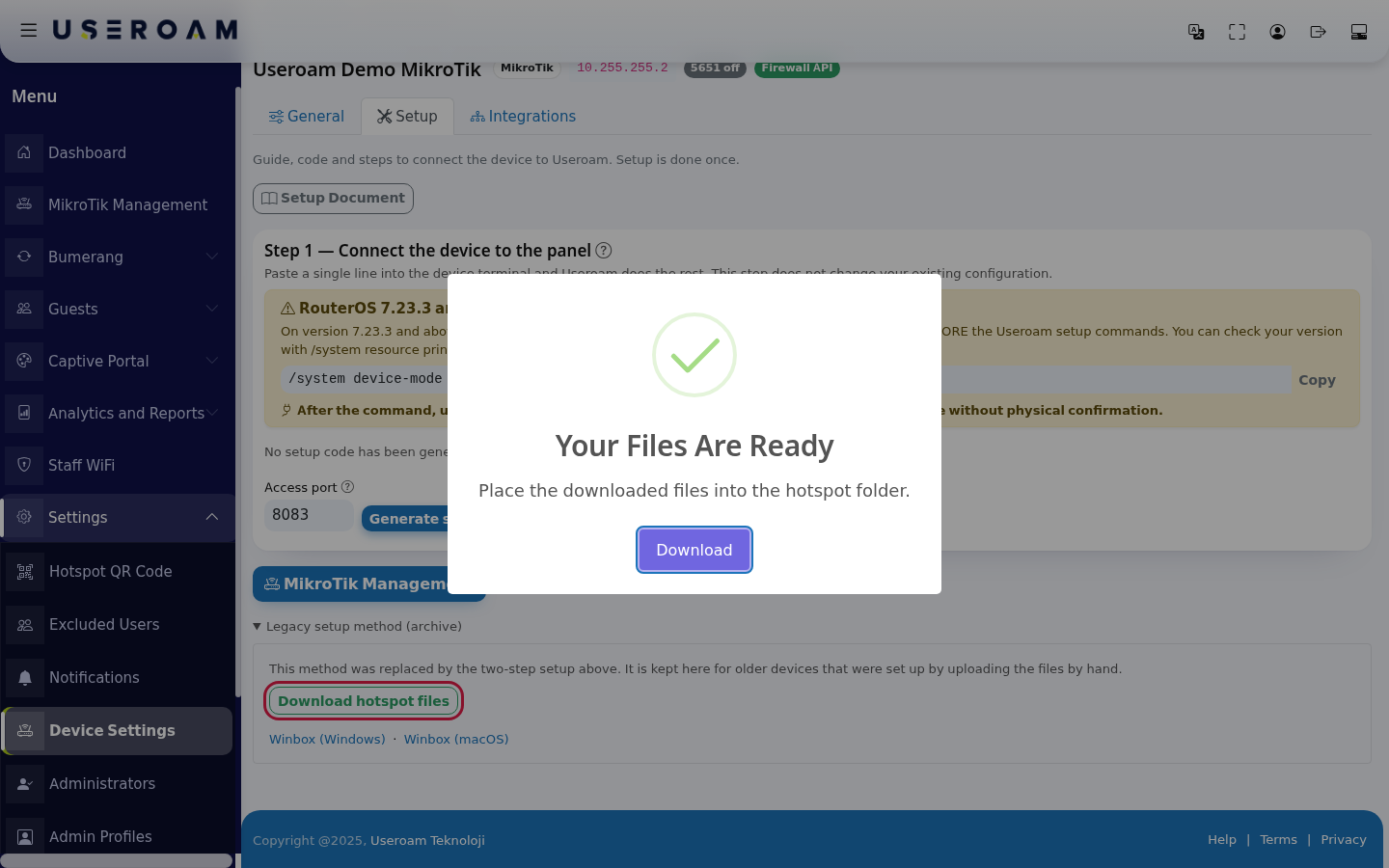

Download the welcome page files. Switch to the Setup tab. At the bottom, open Legacy setup method (archive) and press Download hotspot files. In the Your Files Are Ready window press Download. A ZIP file is saved to your computer; the welcome pages inside it are specific to this router.

Extract the ZIP into a folder. Do not use the useroam-init.rsc file inside it: it is an old setup file, it does not set up 5651 logging and it contains settings that stop the login screen from opening on phones. The setup file on this page replaces it. You only need these 8 files from the ZIP: login.html, status.html, logout.html, error.html, rlogin.html, redirect.html, alogin.html, md5.js.
Read the router's ports. Type the lines below into the terminal one by one. They only read; nothing is changed.
```
/interface print
/interface bridge port print
/ip route print where dst-address=0.0.0.0/0
/ip address print
```
- Internet port (WAN): in the output of the third command, the interface the active default route goes out of (for example ether1 or pppoe-out1). This name will be <WAN_ARAYUZU>.
- Guest port: the port or bridge the guest access point is connected to (for example ether3 or bridge-guest). This name will be <MISAFIR_ARAYUZU>. Do not pick a port that the second command lists as a member of a bridge; pick the bridge itself. Do not pick the internet port.

Check for an earlier setup on the router. These commands also only read.

/ip hotspot print
/radius print
/ip dhcp-server print
/system logging action print

The setup file treats existing settings like this:

If the router already has	What the setup file does
An IP address on the guest port	Replaces it with 10.99.1.1/24. To keep your address, write it in step 7.
A DHCP server on the guest port	Keeps it and does not add a new one.
A hotspot on the guest port	Does not add another hotspot; links the existing one to the Useroam profile.
RADIUS, NAT or pre-login allow entries that Useroam added earlier	Deletes and re-adds them. Your other RADIUS entries are not touched.
A hotspot or RADIUS setup from another company	Leaves it alone; both setups stay side by side and may clash. Contact our support team first.

Do not apply both the automatic setup and the offline setup to the same router. If the router was already set up automatically, you do not need this page.

Prepare the setup file. Open the Setup file box below, copy all of its content and paste it into Notepad. Replace the three values at the top with your own; keep the quotation marks, remove the angle brackets (< >):

In the file	Replace with	From	Example
<MISAFIR_ARAYUZU>	Name of the guest port	Step 5	bridge-guest
<WAN_ARAYUZU>	Name of the internet port	Step 5	ether1
<CIHAZ_SIFRESI>	Device Password	Step 3

After the change the lines look like this:

:local ifc     "bridge-guest"
:local wan     "ether1"
:local rsecret "Your-Device-Password"

The guest network comes as 10.99.1.0/24. If this network is already used elsewhere on your router, change the gw, gwIp, net and havuz lines in the same pattern; otherwise leave them. Save the file as useroam-offline.rsc (in Notepad set Save as type to All Files so .txt is not added). The comments inside the file are in Turkish; they do not change how it works.

Setup file (press to open)

# =============================================================================
# Useroam - MikroTik internete acmadan (offline) kurulum
# Kaynak: panelin kurulum sihirbazinin urettigi script;
# panel baglantisi gerektiren iki bolum cikarildi (portal dosyalari, panele bildirim).
# Duzenlenecek 3 deger: <MISAFIR_ARAYUZU>  <WAN_ARAYUZU>  <CIHAZ_SIFRESI>
# 10.99.1.1/24 cihazda baska bir agda kullaniliyorsa gw/gwIp/net/havuz satirlarini degistirin.
#
# Ilk is mevcut yapilandirmanin yedegini alir: useroam-oncesi-manuel.rsc
# Geri donmek icin:  /system reset-configuration run-after-reset=useroam-oncesi-manuel.rsc
# =============================================================================

:local ifc     "<MISAFIR_ARAYUZU>"
:local wan     "<WAN_ARAYUZU>"
:local gw      "10.99.1.1/24"
:local gwIp    "10.99.1.1"
:local net     "10.99.1.0/24"
:local havuz   "10.99.1.10-10.99.1.254"
:local dom     "hotspot.useroam.local"
:local rsecret "<CIHAZ_SIFRESI>"
:local panelIp "104.247.174.120"
:put ""
:put "Useroam: yedek aliniyor..."
/export file=("useroam-oncesi-manuel")
:delay 3s
:put "Useroam: yedek hazir -> useroam-oncesi-manuel.rsc"

# --- 1) Misafir agi IP adresi -----------------------------------------------
# Arayuzde adres varsa DEGISTIRILIR (yukaridaki gw degeri), yoksa eklenir.
/ip address
:local mevcutAdr [find interface=$ifc]
:if ([:len $mevcutAdr] = 0) do={
    add address=$gw interface=$ifc comment="useroam-gw"
    :put "Useroam: IP eklendi $gw"
} else={
    set [:pick $mevcutAdr 0] address=$gw
    :put "Useroam: IP guncellendi $gw"
}

# --- 2) DHCP havuzu + sunucusu ----------------------------------------------
/ip pool
:if ([:len [find name="useroam-pool"]] = 0) do={
    add name=useroam-pool ranges=$havuz
} else={ set [find name="useroam-pool"] ranges=$havuz }

/ip dhcp-server
:if ([:len [find interface=$ifc]] = 0) do={
    add name=useroam-dhcp interface=$ifc address-pool=useroam-pool lease-time=1h disabled=no
    :put "Useroam: DHCP sunucusu eklendi"
} else={ :put "Useroam: mevcut DHCP sunucusu korundu" }

/ip dhcp-server network
:if ([:len [find address=$net]] = 0) do={
    add address=$net gateway=$gwIp dns-server=$gwIp comment="useroam"
}

# --- 2b) Eski captive portal API duyurusu (DHCP 114) TEMIZLENIR -------------
# CAPPORT_114_KALDIR_2026: duyurulan capport API'si "captive" degerini dogru
# soyleyemedigi surece iOS'un kendi probe'undan (captive.apple.com) KOTUDUR:
# iOS API'ye guvenir ve giris basarili olsa bile "Done" dugmesini hic gostermez
# (sahada olculdu, kaldirilinca duzeldi). Bu yuzden artik TANIMLANMIYOR ve
# eski kurulumlardan kalan kayit VARSA SILINIYOR.
# Yalnizca KENDI kaydimiz hedeflenir (useroam-capport / -set); musterinin
#    kendi DHCP secenegine ve option-set'ine DOKUNULMAZ.
# Sira zorunlu: once ag baglantisi cozulur, sonra set, sonra option
#    (kullanimdayken silinmez; yarim kalirsa ag kaydinda dangling referans kalir).

:do {
    :foreach n in=[/ip dhcp-server network find] do={
        :if ([/ip dhcp-server network get $n dhcp-option-set] = "useroam-capport-set") do={
            /ip dhcp-server network set $n dhcp-option-set=""
        }
    }
    /ip dhcp-server option sets remove [/ip dhcp-server option sets find name="useroam-capport-set"]
    /ip dhcp-server option remove [/ip dhcp-server option find name="useroam-capport"]
    :put "Useroam: eski captive portal API duyurusu (DHCP 114) temizlendi"
} on-error={ :put "Useroam: DHCP 114 temizligi atlandi (menu yok veya kayit yok)" }

# --- 3) DNS (misafirlerin cozumleme yapabilmesi + 5651 gorunurlugu) ---------
/ip dns
set allow-remote-requests=yes
:if ([:len [get servers]] = 0) do={ set servers=8.8.8.8,1.1.1.1 }

# Misafirlere DNS acmak, cihazi INTERNETE de acik cozumleyici yapar (amplification).
# WAN uzerinden gelen DNS sorgulari kapatilir.
/ip firewall filter
:if ([:len [find comment="useroam-dns-wan-drop"]] = 0) do={
    add chain=input in-interface=$wan protocol=udp dst-port=53 action=drop comment="useroam-dns-wan-drop"
    add chain=input in-interface=$wan protocol=tcp dst-port=53 action=drop comment="useroam-dns-wan-drop"
    :put "Useroam: WAN uzerinden DNS kapatildi"
}

# --- 4) Internet cikisi (NAT) -----------------------------------------------
# COKLU_WAN_NAT_2026: tek arayuze baglamak, ikinci/yedek WAN devreye girdiginde misafirin
# internetini kesiyordu. Artik WAN arayuz LISTESI kullaniliyor: kac hat olursa olsun calisir.
# Liste yoksa olusturulur, secilen WAN uye degilse eklenir (musteri sonradan hat eklerse
# yalnizca listeye uye yapmasi yeter).
:do {
    :if ([:len [/interface list find name="WAN"]] = 0) do={
        /interface list add name=WAN comment="useroam"
    }
    :if ([:len [/interface list member find list=WAN interface=$wan]] = 0) do={
        /interface list member add list=WAN interface=$wan comment="useroam"
    }
    # Eski tek-arayuzlu kural varsa yenisiyle degistirilir.
    :foreach r in=[/ip firewall nat find comment="useroam-masq"] do={ /ip firewall nat remove $r }
    /ip firewall nat add chain=srcnat action=masquerade src-address=$net out-interface-list=WAN comment="useroam-masq"
    :put "Useroam: NAT (masquerade) - tum WAN arayuzleri"
} on-error={ :put "USEROAM WARNING: NAT step failed, continuing." }

# --- 5) RADIUS --------------------------------------------------------------
# Once alan adi denenir (IP degisirse cihaz dokunmadan calismaya devam eder),
# kabul edilmezse IP'ye dusulur.
/radius
:foreach r in=[find comment="useroam-radius"] do={ remove $r }
:do {
    add address=panel.useroam.com secret=$rsecret service=hotspot timeout=5s comment="useroam-radius"
    :put "Useroam: RADIUS = alan adi"
} on-error={
    add address=$panelIp secret=$rsecret service=hotspot timeout=5s comment="useroam-radius"
    :put "Useroam: RADIUS = IP (alan adi kabul edilmedi)"
}
# RouterOS 7.2x: cevapta Message-Authenticator zorunlulugunu kapat (otomatik baglanti kurulumu ile ayni).
# Bu ayar olmayan eski surumlerde satir atlanir.
:do {
    /radius set [find comment="useroam-radius"] require-message-auth=no
    :put "Useroam: radius message-auth requirement disabled."
} on-error={ :put "Useroam: require-message-auth bu surumde yok, atlandi." }

# --- 6) Hotspot profili + sunucusu ------------------------------------------
/ip hotspot profile
:if ([:len [find name="useroam-profile"]] = 0) do={
    add name=useroam-profile hotspot-address=$gwIp dns-name=$dom html-directory=hotspot \
        login-by="http-chap,http-pap" use-radius=yes radius-interim-update=5m \
        nas-port-type=wireless-802.11 split-user-domain=no
} else={
    set [find name="useroam-profile"] hotspot-address=$gwIp dns-name=$dom html-directory=hotspot \
        login-by="http-chap,http-pap" use-radius=yes
}

/ip hotspot
:if ([:len [find interface=$ifc]] = 0) do={
    add name=useroam-hotspot interface=$ifc address-pool=useroam-pool profile=useroam-profile \
        addresses-per-mac=2 idle-timeout=30m keepalive-timeout=2m disabled=no
    :put "Useroam: hotspot sunucusu eklendi"
} else={
    set [find interface=$ifc] profile=useroam-profile disabled=no
    :put "Useroam: mevcut hotspot sunucusu Useroam profiline baglandi"
}

# --- 7) Captive portal sayfalari --------------------------------------------
# OFFLINE: dosyalar panelden indirilip Winbox Files ile hotspot klasorune elle yuklenir.

# --- 8) Walled garden (giris oncesi erisilmesi gerekenler) ------------------
# Isletim sisteminin BAGLANTI KONTROLU adresleri (captive.apple.com,
# connectivitycheck.*, msftconnecttest) BILEREK YOK: izin verilirse cihaz "internet
# var" sanar ve captive giris ekrani (iOS CNA) hic acilmaz.
# WG_CNA_2026: joker Google izinleri (*.google.com, *.gstatic.com) KALDIRILDI.
# Sebep: Android baglanti kontrolu connectivitycheck.gstatic.com ve
# connectivitycheck.google.com uzerinden yapiliyor. Joker izinli oldugunda cihaz
# "internet var" sanip GIRIS EKRANINI HIC ACMIYOR (sessiz ariza; E40'ta ayni hatayi
# Apple alan adlari icin yasamistik). Google ile giris icin gereken adresler tek tek yazildi.
/ip hotspot walled-garden
:foreach w in=[find comment="useroam-wg"] do={ remove $w }
:foreach d in={
    "*.useroam.com"; "useroam.com"; "panel.useroam.com"; "cloud.useroam.com";
    "*.wa.me"; "*.whatsapp.com"; "*.whatsapp.net"; "g.whatsapp.net"; "mmg.whatsapp.net"; "*.fbsbx.com";
    "*.facebook.com"; "*.fbcdn.net";
    "accounts.google.com"; "accounts.youtube.com"; "apis.google.com"; "ssl.gstatic.com";
    "fonts.gstatic.com"; "*.googleapis.com"; "*.recaptcha.net";
    "appleid.apple.com";
} do={ add dst-host=$d comment="useroam-wg" }

/ip hotspot walled-garden ip
:foreach w in=[find comment="useroam-wg"] do={ remove $w }
add dst-address=$panelIp action=accept comment="useroam-wg"
add dst-address=157.240.0.0/16 action=accept comment="useroam-wg"
add dst-address=31.13.0.0/16 action=accept comment="useroam-wg"

# --- 9) 5651 loglama: syslog -> Useroam ------------------------------------
:do {
    :if ([:len [/system logging action find name="useroamremote"]] = 0) do={
        /system logging action add name=useroamremote target=remote remote=$panelIp remote-port=514
    } else={
        /system logging action set [/system logging action find name="useroamremote"] remote=$panelIp remote-port=514
    }
    :foreach t in={"hotspot";"dhcp";"firewall";"hotspot,account"} do={
        :if ([:len [/system logging find topics=$t action="useroamremote"]] = 0) do={
            /system logging add topics=$t action=useroamremote
        }
    }
    :put "Useroam: 5651 syslog yonlendirmesi kuruldu"
} on-error={ :put "USEROAM WARNING: syslog step failed, continuing." }

# --- 9b) 5651 ERISIM KAYDI: her yeni misafir baglantisi loglanir ------------
# Sophos'ta firewall connection log'unun karsiligi. MikroTik "firewall" topic'i
# ancak bir kuralda log=yes/action=log varsa konusur; bu kural onu tetikler.
# action=log SONLANDIRICI DEGIL -> trafigi etkilemez, sadece kayit uretir.
# Kural listenin BASINA alinir, yoksa musterinin mevcut drop kurallari golgeler.
:do {
    :if ([:len [/ip firewall filter find comment="useroam-5651-log"]] = 0) do={
        /ip firewall filter add chain=forward src-address=$net connection-state=new action=log log-prefix="useroam5651" comment="useroam-5651-log"
    }
    :do {
        /ip firewall filter move [/ip firewall filter find comment="useroam-5651-log"] destination=0
    } on-error={ :put "USEROAM WARNING: 5651 log kurali basa TASINAMADI - kural listenin sonunda. Mevcut drop kurallariniz onu golgeleyebilir, kayit uretmeyebilir." }
    :put "Useroam: 5651 erisim kaydi kurali eklendi"
} on-error={ :put "USEROAM WARNING: 5651 access-log step failed, continuing." }
# --- 10) DNS bypass engelleme (DoH / DoT / QUIC) ---------------------------
:do {
    :if ([:len [/ip firewall nat find comment="useroam-dns-udp"]] = 0) do={
        /ip firewall nat add chain=dstnat src-address=$net protocol=udp dst-port=53 action=redirect to-ports=53 comment="useroam-dns-udp"
    }
    :if ([:len [/ip firewall nat find comment="useroam-dns-tcp"]] = 0) do={
        /ip firewall nat add chain=dstnat src-address=$net protocol=tcp dst-port=53 action=redirect to-ports=53 comment="useroam-dns-tcp"
    }
    :if ([:len [/ip firewall filter find comment="useroam-dot-tcp"]] = 0) do={
        /ip firewall filter add chain=forward src-address=$net protocol=tcp dst-port=853 action=drop comment="useroam-dot-tcp"
    }
    :if ([:len [/ip firewall filter find comment="useroam-dot-udp"]] = 0) do={
        /ip firewall filter add chain=forward src-address=$net protocol=udp dst-port=853 action=drop comment="useroam-dot-udp"
    }
    :if ([:len [/ip firewall filter find comment="useroam-quic"]] = 0) do={
        /ip firewall filter add chain=forward src-address=$net protocol=udp dst-port=443 action=drop comment="useroam-quic"
    }
    :put "Useroam: DNS bypass engelleme kuruldu"
} on-error={ :put "USEROAM WARNING: dns-hardening step failed, continuing." }
# --- 11) Misafir -> cihaz yonetimi kapali ----------------------------------
# 80/443 KASITLI OLARAK ACIK: captive portal sayfasi bu portlardan servis edilir.
:do {
    :if ([:len [/ip firewall filter find comment="useroam-mgmt-drop"]] = 0) do={
        /ip firewall filter add chain=input src-address=$net protocol=tcp dst-port=22,23,8291,8728,8729 action=drop comment="useroam-mgmt-drop" place-before=0
    }
    :put "Useroam: misafir -> yonetim portlari kapatildi"
} on-error={ :put "USEROAM WARNING: mgmt-drop step failed, continuing." }
# --- 12) Misafir -> ic aglar izolasyonu ------------------------------------
# Cihazin ic aglarini VARSAYMAK yerine ozel adres uzayinin tamami kapatilir.
# Misafir-misafir izolasyonu da bunun yan urunu olarak gelir.
:do {
    :if ([:len [/ip firewall filter find comment="useroam-izole"]] = 0) do={
        /ip firewall filter add chain=forward src-address=$net dst-address=10.0.0.0/8 action=drop comment="useroam-izole"
        /ip firewall filter add chain=forward src-address=$net dst-address=172.16.0.0/12 action=drop comment="useroam-izole"
        /ip firewall filter add chain=forward src-address=$net dst-address=192.168.0.0/16 action=drop comment="useroam-izole"
    }
    :put "Useroam: misafir -> ic ag izolasyonu kuruldu"
} on-error={ :put "USEROAM WARNING: isolation step failed, continuing." }
# --- Bitti ------------------------------------------------------------------
:put ""
:put "Useroam: kurulum komutlari tamamlandi."
:put "Simdi portal dosyalarini (login.html vb.) hotspot klasorune yukleyin."
:put "Test: connect a device to $ifc and open any web page - the Useroam portal should appear."
:put ""

Upload the file to the router. In Winbox open Files from the left menu and drag useroam-offline.rsc into the window. Check: the command below should list the file.
```
/file print where name~"useroam-offline"
```
Run the setup file. Type this into the terminal and press Enter:
```
/import file-name=useroam-offline.rsc
```
Lines starting with Useroam: scroll by. First, a backup of your current settings is written to useroam-oncesi-manuel.rsc. At the end you should see Useroam: kurulum komutlari tamamlandi. ("setup commands finished"). A line starting with USEROAM WARNING: ... step failed, continuing. means that step was not applied; note the line and contact our support team. The line Useroam: require-message-auth bu surumde yok, atlandi. ("not available in this version, skipped") is not an error.
Upload the welcome page files. The hotspot folder is created by the setup. In Winbox Files, open the hotspot folder and drag the 8 files from step 4 into it. Confirm overwriting files with the same name. To see the folder name:
```
/ip hotspot profile print where name=useroam-profile
```
The output shows html-directory=hotspot. Check:
```
/file print where name~"hotspot/login.html"
```

Check the setup on the router. The commands below only read. Look for the values on the right in each output:

Command	What to look for
`/radius print`	service=hotspot, address panel.useroam.com (or 104.247.174.120), comment useroam-radius
`/ip hotspot print`	Your guest port and useroam-profile
`/system logging action print where name=useroamremote`	remote=104.247.174.120, remote-port=514
`/ip firewall filter print where comment~"useroam"`	The useroam-5651-log rule at the top of the list
`/ip firewall nat print where comment="useroam-masq"`	A masquerade rule for the guest network

Test a guest login and check the panel. Connect a phone to the guest Wi-Fi and open any web page: the Useroam welcome page should appear. Log in. Then in the panel:
- In Guests > Active Guests the phone's session should be listed (Active Guests).
- In Analytics and Reports > 5651 Logs a record should appear for this router (5651 Logs).

How does the manual setup file differ from the wizard?

The file is the same script the wizard generates; a plain explanation of each step is in the "What does the script do on the device?" table on the MikroTik Setup Wizard page. Differences in the offline version:

It does not download the welcome page files from the panel; you upload them in step 10.
It does not notify the panel when it finishes.
It does not turn on the setting that listens for RADIUS requests from outside (disconnect requests). Useroam does not send such requests today.
It turns off a RADIUS setting that, on RouterOS 7.2x, sends guests back to the welcome page after login (require-message-auth=no).
All four security steps are on (5651 logging, DNS/DoT/QUIC blocking, closing management ports to guests, isolating guests from internal networks).

How do I go back?

The script first backs up your current settings: useroam-oncesi-<date-time>.rsc with the wizard (the file name is shown in the terminal on the Useroam: yedek hazir -> line), useroam-oncesi-manuel.rsc with the manual setup. If you run the manual setup file a second time, this backup is overwritten with the settings at that moment (already set up); download the first backup from Files to your computer before the second run. To go back completely, use the backup file name:

/system reset-configuration run-after-reset=useroam-oncesi-manuel.rsc

This command resets the router and reloads the backup; your connection drops meanwhile. This way back has not been tested by Useroam. Use it only when you are at the router and sure; if unsure, contact our support team.

If Useroam cannot reach the router (automatic setup)

In the automatic setup the panel connects over HTTPS to the router's device address and Access port (RouterOS www-ssl service, REST API). If the connection is not made within 4 seconds, the router counts as unreachable. If the terminal shows USEROAM: device registered, but the panel could NOT connect back. or the console shows Cannot reach the device. It must run RouterOS 7.1 or newer and have the web service (www-ssl) enabled., check the following in order:

Possible cause	How to check	Fix
RouterOS 6	version in `/system resource print` starts with 6.	Upgrade to RouterOS 7.1 or newer, or use the offline setup. RouterOS 6 has no REST API.
Web service off	In `/ip service print where name=www-ssl` the service is disabled (marked X) or has no certificate.	Run the automatic setup line again; it turns the service and certificate on.
Web service limited to other addresses	In the same output the address field is filled and does not include 104.247.174.120.	Add this address to the allowed addresses.
Router behind a modem	In `/ip address print` the internet port's address starts with 10.x, 172.16-31.x or 192.168.x.	On the modem forward an external port (for example 8443) to port 443 of the MikroTik, enter that port as Access port in the panel and generate a new code.
Carrier shared IP (CGNAT)	The internet port's address is between 100.64 and 100.127, or the address the router sees differs from the public address in the panel.	It cannot be reached from outside. Use the offline setup, or ask your provider for a static (public) IP.
A firewall or the internet provider blocks 443	Is there a `/ip firewall filter print where comment="useroam-api-allow"` rule at the top of the list; is incoming 443 blocked on the modem or by the provider.	If the rule is missing, run the setup line again. If the provider blocks it, use another external port.
The Useroam user was changed	`/user print where name~"useroam"` shows address=104.247.174.120/32 and group useroam-api.	Run the setup line again (generate a new code).
The router's certificate changed	You reset the router or changed the www-ssl certificate. If the panel stored the certificate fingerprint, it will not connect with a different certificate.	Contact our support team.

When should I switch to the offline setup? When the router is behind CGNAT, when you cannot set up port forwarding, or when you do not want the router's management service exposed to the internet. With the offline setup, the features marked "Does not work" in the table above are not available.

Does a VPN give the panel access back? No. VPN (WireGuard) Setup is for you and your staff to reach the business's internal network from outside. The Useroam panel does not connect to the router through the VPN, and the VPN wizard itself needs the panel to reach the router.

Frequently asked questions

Does the offline setup open any port to the router from outside?
The script adds no management user, web service or inbound management access, and it blocks DNS queries arriving from the internet side. The wizard script turns on the setting that accepts disconnect requests from the RADIUS server (/radius incoming, UDP 3799). The manual setup file does not turn it on.

The terminal said "could NOT connect back". Did the setup fail?
No. In the offline setup the panel does not connect to the router, so this line is expected. Check the result with the commands in step 10 and by trying a guest login with a phone.

It says "kurulum kodu kabul edilmedi" and "reached us from".
The Device Address in the panel is not the address the router uses to reach the internet. Save the first address in the message as the Device Address in Device Settings > General and run the line again. If this address stays wrong, guest login and 5651 logging do not work either.

The code expired or I used it twice.
The code is valid for 60 minutes and can be used once. Run the wizard again and generate a new code.

The welcome page does not open.
Check with /file print where name~"hotspot/" that the welcome files were downloaded; if the terminal showed lines like Useroam: login.html indirilemedi (could not be downloaded), run the script again. Make sure the device address in the panel is the router's real public address. On RouterOS 7.23.3 and newer, if you did not turn on device mode the hotspot may not have been created (/ip hotspot print is empty).

Login works but the guest falls back to the welcome page.
On RouterOS 7.2x the require-message-auth setting of the RADIUS entry can cause this. If /radius print detail does not show require-message-auth=no on the Useroam entry, run: :do { /radius set [find comment="useroam-radius"] require-message-auth=no } on-error={}. The manual setup file sets this itself.

There are no records in 5651 Logs.
Check that 5651 Logging is on in the panel, that the device address is the router's public address, and that the router can send UDP 514 outwards. Records are matched by the router's public address.

Can I switch to the automatic setup later?
Yes. The single line in the MikroTik Integration Guide only opens the panel connection on the router; the guest network was built with the same names, so you do not need to set it up again.

I ran useroam-init.rsc. What should I do?
Contact our support team. That file makes an old setup (it allows the phones' connectivity-check addresses and does not set up 5651 logging).

MikroTik Integration Guide (automatic setup)
MikroTik Setup Wizard
Adding a New Device
Device Settings
Groups
5651 Logs
